HRPF Series (DIN Connector) | ||||||||
Ordering information | ||||||||
HRPF | - | 24A | - | 6S | - | 8 | ||
① | ②③ | ④⑤ | ⑥ | |||||
① Series prefix | ||||||||
② No. of contact : 24 | ||||||||
③ Contact fisnish : A (Gold flash) | ||||||||
④ Tail length : 6㎜ | ||||||||
⑤ Standard type | ||||||||
⑥ No.of power insert hole : 8 |
- 정보

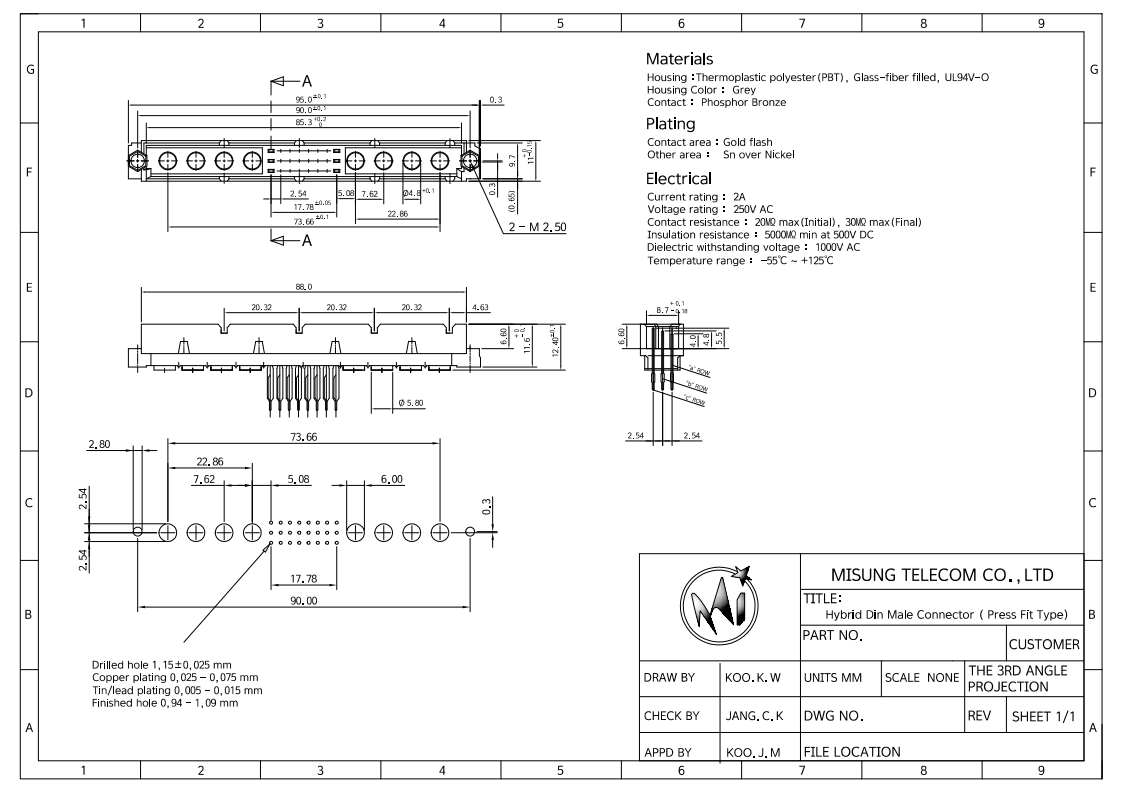

- 도면
-
Materials
Housing : PBT
Housing Color : Grey
Contact : Phosphor Bronze
Plating
Contact Plating : Au or Sn Over Ni
Contact area : Au flash
Other area : Au flash
Underplate : Ni 1.27㎛
Electrical
Current rating : 2A
Voltage rating : 250V AC
Contact resistance : 30㏁ max
Insulation resistance : 5000㏁ Min
Dielectric withstanding voltage : 1000V AC
Temperature range : -55℃ ~ +125℃
-
-
